工业继电器（通用型）

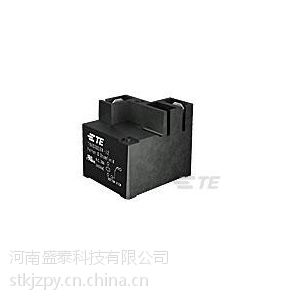

T9AS1D12-110

产品亮点

· 产品系列= T9A

· Contact - Current Class = 20A to 30A Class, Greater Than 16A

· 触点额定电流= 30 A

· 端子类型= PCB-THT

· 触点组合形式= 1 Form A (NO)

· 电气特点

Contact - Current Class	20A to 30A Class, Greater Than 16A
触点额定电流(A)	30
Contact - Limiting Continuous Current (A)	30
Contact - Limiting Making Current (A)	30
Contact - Limiting Breaking Current (A)	30
Insulation - Initial Dielectric Between Coil/Contact Class	1500V to 2500VA Class
Insulation - Initial Dielectric Between Open Contacts (V rms)	1500
介电强度－线圈接触体(V rms)	2500
Contact - Rated Voltage (VAC)	277
Contact - Switching Voltage Max. (VAC)	277
Contact - Limiting Short-Time Current (A)	30
Contact - Switching Recommended Load, Min.	1000mA at 5V
线圈电压(VDC)	110
线圈电阻(????6????8)	12100
额定线圈功率(mW)	1000
Coil - Rated Power Class	800mW to 1000mW Class
Insulation - Initial Insulation Resistance (M????6????8)	1000000
Insulation - Creepage Class	5.5mm to 8mm Class
Insulation - Clearance Class	2.5mm to 4mm Class
FCC 68绝缘认证	6000V Initial Surge Withstand Voltage between Contacts and Coil

· 尺寸

Mechanical - Length Class	30mm to 35mm Class
长度(mm [in])	32.50 [1.281]
Mechanical - Width Class	25mm to 30mm Class
宽度(mm [in])	27.40 [1.079]
Mechanical - Height Class	25mm to 30mm Class
高度(mm [in])	27.90 [1.098]
Insulation - Clearance Between Contact and Coil (mm [in])	3.18 [0.125]
Insulation - Creepage Between Contact and Coil (mm [in])	6.36 [0.25]

· 主体特性

安装方式	PCB
重量(g [oz])	26.00 [0.918]

· 触点特性

· 配置特性

· 行业标准

符合RoHS/ELV标准	符合RoHS但不符合ELV标准[符合RoHS但不符合ELV标准]
无铅焊接制程	波峰焊可达260°C,波峰焊可达240°C
RoHS/ELV符合记录	改为符合RoHS而不是ELV指令
Approved/Registered Standards	UL, CSA

· 环境

Environmental - Category of Protection	RTIII
Environmental - Ambient Temperature, Max. (°C [°F])	85 [185]
Environmental - Ambient Temperature Class	70°C to 85°C Class

· 包装特性

包装方式

盘，盒
